root@b89af2baca14:/WORKDIR/gostudy/hello# readelf -h main ELF Header: Magic: 7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00 Class: ELF64 Data: 2's complement, little endian Version: 1 (current) OS/ABI: UNIX - System V ABI Version: 0 Type: EXEC (Executable file) Machine: AArch64 Version: 0x1 Entry point address: 0x701d0 // 程序入口地址 Start of program headers: 64 (bytes into file) Start of section headers: 456 (bytes into file) Flags: 0x0 Size of this header: 64 (bytes) Size of program headers: 56 (bytes) Number of program headers: 7 Size of section headers: 64 (bytes) Number of section headers: 23 Section header string table index: 3 root@b89af2baca14:/WORKDIR/gostudy/hello# root@b89af2baca14:/WORKDIR/gostudy/hello# dlv exec ./main Type 'help' for list of commands. (dlv) b *0x701d0 Breakpoint 1 set at 0x701d0 for _rt0_arm64_linux() /usr/local/go/src/runtime/rt0_linux_arm64.s:8 (dlv)
(gdb) info files Symbols from "/WORKDIR/gostudy/hello/main". Local exec file: `/WORKDIR/gostudy/hello/main', file type elf64-littleaarch64. Entry point: 0x701d0 // 程序入口地址 0x0000000000011000 - 0x0000000000094220 is .text 0x00000000000a0000 - 0x00000000000d51a3 is .rodata 0x00000000000d5340 - 0x00000000000d5824 is .typelink 0x00000000000d5840 - 0x00000000000d5898 is .itablink 0x00000000000d5898 - 0x00000000000d5898 is .gosymtab 0x00000000000d58a0 - 0x000000000012a160 is .gopclntab 0x0000000000130000 - 0x0000000000130020 is .go.buildinfo 0x0000000000130020 - 0x0000000000140580 is .noptrdata 0x0000000000140580 - 0x0000000000147d50 is .data 0x0000000000147d60 - 0x0000000000176b48 is .bss 0x0000000000176b60 - 0x000000000017bde0 is .noptrbss 0x0000000000010f9c - 0x0000000000011000 is .note.go.buildid (gdb)

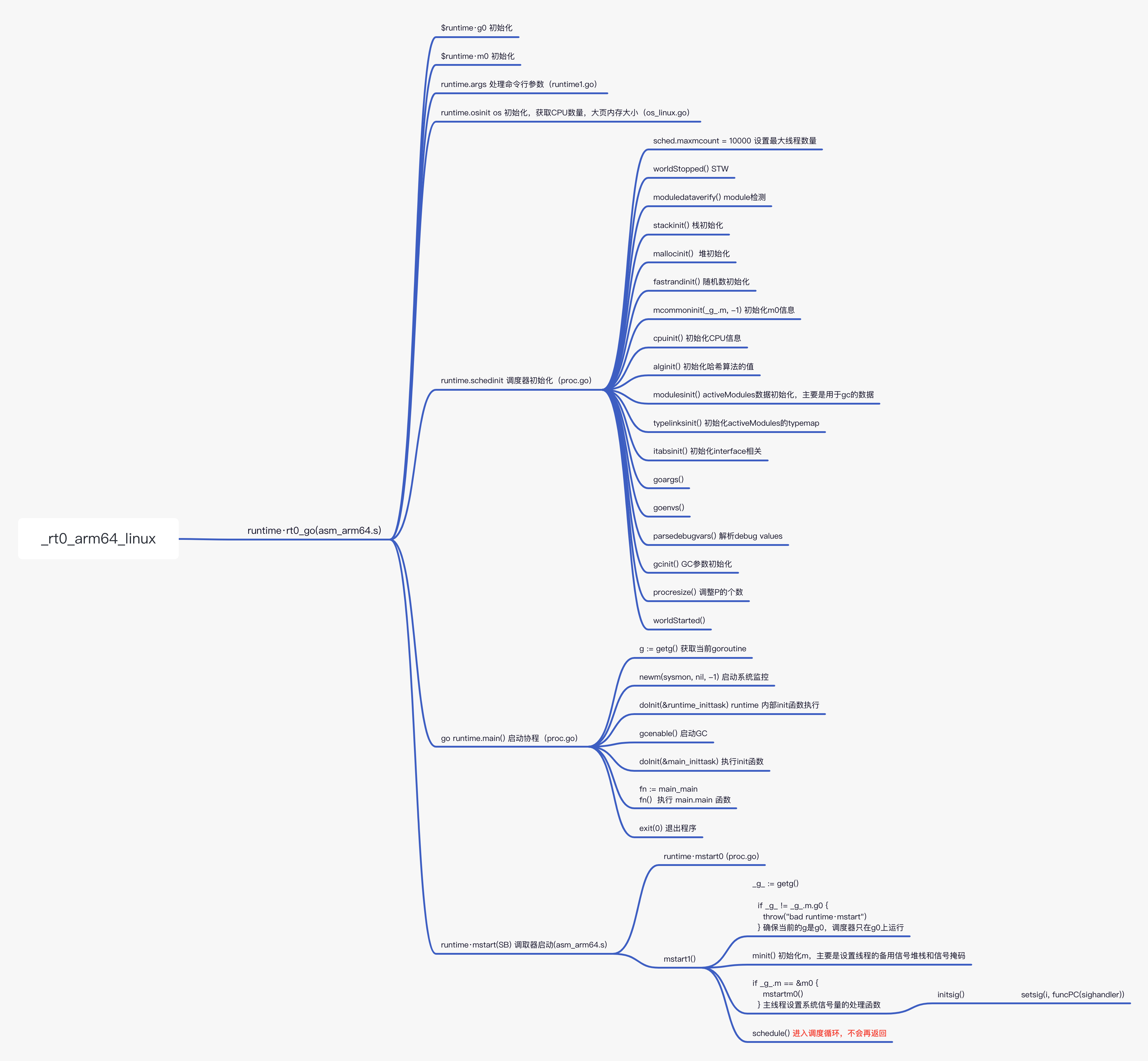

启动流程
实验环境信息如下：
Darwin fudenglongdeMacBook-Pro.local 21.2.0 Darwin Kernel Version 21.2.0: Sun Nov 28 20:28:41 PST 2021; root:xnu-8019.61.5~1/RELEASE_ARM64_T6000 arm64
// set the per-goroutine and per-mach "registers" MOVD $runtime·m0(SB), R0
// save m->g0 = g0 MOVD g, m_g0(R0) // save m0 to g0->m MOVD R0, g_m(g)
并发调度
相比其他语言复杂的并发系统设计，Go语言中在面向用户时，仅提供一个 go 关键字即可实现异步任务和并发调度，但是因其简单，所以在一般系统中，百万级别的 g 也是常有的，为了保证这些 goroutine 的公平调度，不饿死也不撑死，所以得有一套公平的调度系统，在经历了初期几代的发展之后，现在逐渐形成了当前的 GPM 模型。
GPM
理解调度器首先要理解三个主要概念：
G: Goroutine，即我们在 Go 程序中使用 go 关键字创建的执行体；
M: Machine，或 worker thread，即传统意义上进程的线程；
P: Processor，即一种人为抽象的、用于执行 Go 代码被要求的局部资源。只有当 M 与一个 P 关联后才能执行 Go 代码。M 发生阻塞或在进行系统调用时间过长时，是没有与之关联的 P；
在这种GPM模型中，数量相对固定的是 P，大多数情况下都是和 CPU 数量相等，多了也没有意义。而 M 和 G 的数量是动态的，在调度初始化中，只设置了 M 的上限是 10000；对于G而言浮动范围就相对较大，少则数百，多则可能达到百万级别。
// func mpreinit(mp *m) { // mp.gsignal = malg(32 * 1024) // OS X wants >= 8K // mp.gsignal.m = mp // if GOOS == "darwin" && GOARCH == "arm64" { // // mlock the signal stack to work around a kernel bug where it may // // SIGILL when the signal stack is not faulted in while a signal // // arrives. See issue 42774. // mlock(unsafe.Pointer(mp.gsignal.stack.hi-physPageSize), physPageSize) // } // } // 创建信号处理的Goroutine mpreinit(mp) if mp.gsignal != nil { mp.gsignal.stackguard1 = mp.gsignal.stack.lo + _StackGuard }
// NumCgoCall() iterates over allm w/o schedlock, // so we need to publish it safely. atomicstorep(unsafe.Pointer(&allm), unsafe.Pointer(mp)) unlock(&sched.lock)
// Allocate memory to hold a cgo traceback if the cgo call crashes. if iscgo || GOOS == "solaris" || GOOS == "illumos" || GOOS == "windows" { mp.cgoCallers = new(cgoCallers) } }
P
P 只是处理器的一种抽象，而并非真正的处理器，它是可以通过 runtime 提供的方法动态调整的，用来实现 work stealing，每个 P 都持有一个G的本地队列。如果没有P的存在，所有的G只能放在全局的队列中，当M执行完一个G，必须锁住全局队列然后取下一个G拿来运行，这会严重降低运行效率。当有了 P 之后，每个P都有一个存储 G 的本地队列，当和 P 关联的 M 运行完一个 G 之后，它会按照：当前P的本地队列、全局、网络、偷取的方式获取一个可运行的 G。
type p struct { id int32 status uint32// one of pidle/prunning/... link puintptr schedtick uint32// incremented on every scheduler call syscalltick uint32// incremented on every system call sysmontick sysmontick // last tick observed by sysmon m muintptr // back-link to associated m (nil if idle) mcache *mcache pcache pageCache raceprocctx uintptr
deferpool [5][]*_defer // pool of available defer structs of different sizes (see panic.go) deferpoolbuf [5][32]*_defer
// Cache of goroutine ids, amortizes accesses to runtime·sched.goidgen. goidcache uint64 goidcacheend uint64
// 无锁访问可运行G队列 runqhead uint32 runqtail uint32 runq [256]guintptr // runnext, if non-nil, is a runnable G that was ready'd by // the current G and should be run next instead of what's in // runq if there's time remaining in the running G's time // slice. It will inherit the time left in the current time // slice. If a set of goroutines is locked in a // communicate-and-wait pattern, this schedules that set as a // unit and eliminates the (potentially large) scheduling // latency that otherwise arises from adding the ready'd // goroutines to the end of the run queue. // // Note that while other P's may atomically CAS this to zero, // only the owner P can CAS it to a valid G. runnext guintptr
// 可用的G，状态都是 _Gdead，可以用来复用 gFree struct { gList n int32 }
sudogcache []*sudog sudogbuf [128]*sudog
// Cache of mspan objects from the heap. mspancache struct { // We need an explicit length here because this field is used // in allocation codepaths where write barriers are not allowed, // and eliminating the write barrier/keeping it eliminated from // slice updates is tricky, moreso than just managing the length // ourselves. lenint buf [128]*mspan }
tracebuf traceBufPtr
// traceSweep indicates the sweep events should be traced. // This is used to defer the sweep start event until a span // has actually been swept. traceSweep bool // traceSwept and traceReclaimed track the number of bytes // swept and reclaimed by sweeping in the current sweep loop. traceSwept, traceReclaimed uintptr
palloc persistentAlloc // per-P to avoid mutex
_ uint32// Alignment for atomic fields below
// The when field of the first entry on the timer heap. // This is updated using atomic functions. // This is 0 if the timer heap is empty. timer0When uint64
// The earliest known nextwhen field of a timer with // timerModifiedEarlier status. Because the timer may have been // modified again, there need not be any timer with this value. // This is updated using atomic functions. // This is 0 if there are no timerModifiedEarlier timers. timerModifiedEarliest uint64
// Per-P GC state gcAssistTime int64// Nanoseconds in assistAlloc gcFractionalMarkTime int64// Nanoseconds in fractional mark worker (atomic)
// gcMarkWorkerMode is the mode for the next mark worker to run in. // That is, this is used to communicate with the worker goroutine // selected for immediate execution by // gcController.findRunnableGCWorker. When scheduling other goroutines, // this field must be set to gcMarkWorkerNotWorker. gcMarkWorkerMode gcMarkWorkerMode // gcMarkWorkerStartTime is the nanotime() at which the most recent // mark worker started. gcMarkWorkerStartTime int64
// gcw is this P's GC work buffer cache. The work buffer is // filled by write barriers, drained by mutator assists, and // disposed on certain GC state transitions. gcw gcWork
// wbBuf is this P's GC write barrier buffer. // // TODO: Consider caching this in the running G. wbBuf wbBuf
runSafePointFn uint32// if 1, run sched.safePointFn at next safe point
// statsSeq is a counter indicating whether this P is currently // writing any stats. Its value is even when not, odd when it is. statsSeq uint32
// Lock for timers. We normally access the timers while running // on this P, but the scheduler can also do it from a different P. timersLock mutex
// Actions to take at some time. This is used to implement the // standard library's time package. // Must hold timersLock to access. timers []*timer
// Number of timers in P's heap. // Modified using atomic instructions. numTimers uint32
// Number of timerDeleted timers in P's heap. // Modified using atomic instructions. deletedTimers uint32
// Race context used while executing timer functions. timerRaceCtx uintptr
// preempt is set to indicate that this P should be enter the // scheduler ASAP (regardless of what G is running on it). preempt bool
// Padding is no longer needed. False sharing is now not a worry because p is large enough // that its size class is an integer multiple of the cache line size (for any of our architectures). }

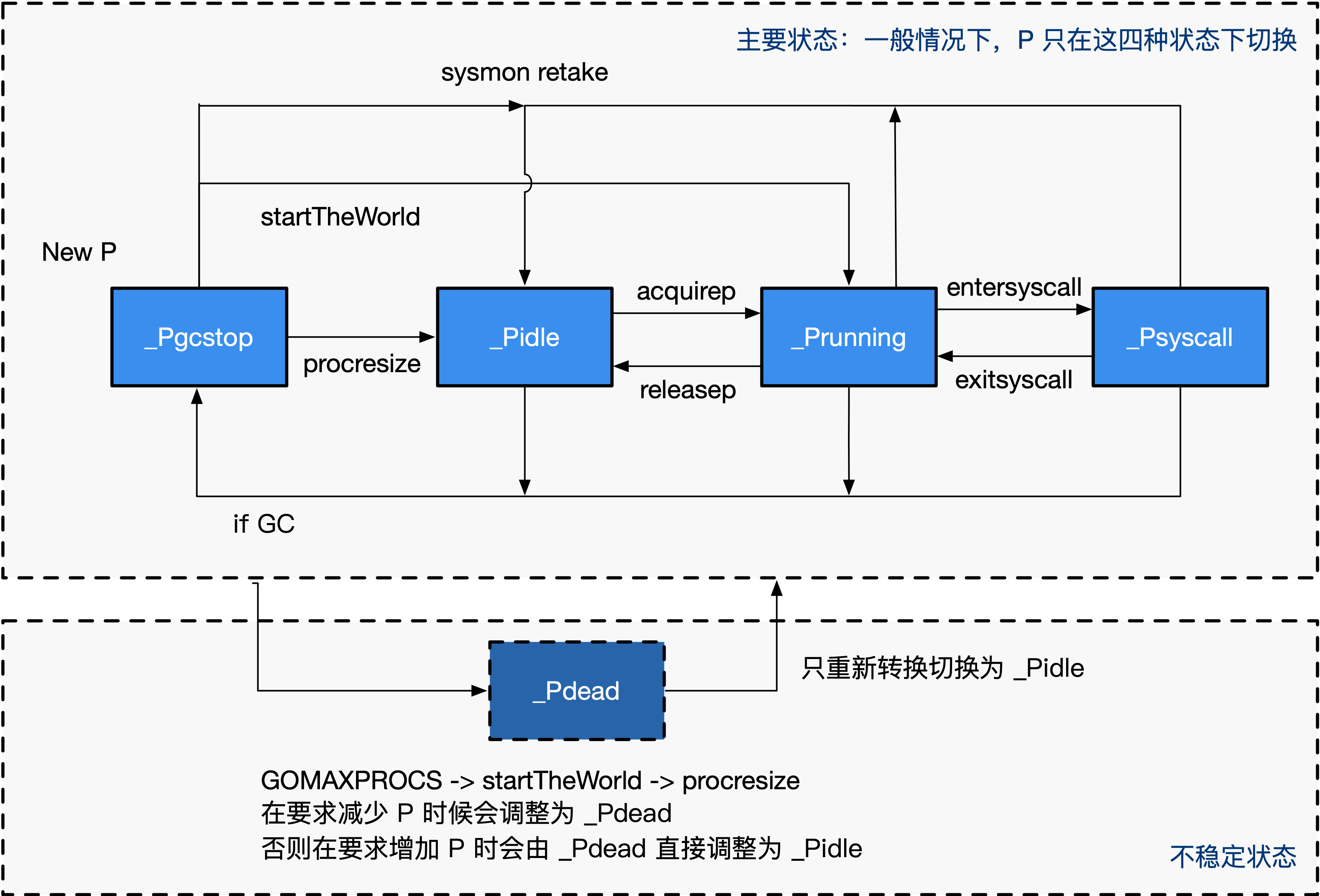

_Pidle：表示没有使用 P 来运行用户代码或调度程序。通常，它位于空闲 P 列表中并且可供调度程序使用，但它可能只是在其他状态之间转换，空闲状态下它的 runq 队列是空的。
_Prunning：表示 P正在被 M 持有运行用户代码或者调度器。只有当 M 持有 P 时，它的状态才被允许修改到 _Prunning。如果没有活干，那么P将切换到 _Pidle 状态；当进行系统调用的时候会切换到 _Psyscall；GC 期间会切换到 _Pgcstop；M 也可以将 P 的所有权直接交给另一个 M（例如，调度到锁定的 G）；
_Psyscall：说明 P 没有在运行用户代码，它与系统调用中的 M 有亲和关系，但不属于它，并且可能被另一个 M 窃取。这与 _Pidle 类似，但使用轻量级转换并保持 M 亲缘关系;
// 初始化新的 P for i := old; i < nprocs; i++ { pp := allp[i] // 如果 p 是新创建的(新创建的 p 在数组中为 nil)，则申请新的 P 对象 if pp == nil { pp = new(p) } pp.init(i) atomicstorep(unsafe.Pointer(&allp[i]), unsafe.Pointer(pp)) }
_g_ := getg() // 如果当前正在使用的 P 应该被释放，则更换为 allp[0] // 否则是初始化阶段，没有 P 绑定当前 P allp[0] if _g_.m.p != 0 && _g_.m.p.ptr().id < nprocs { // 继续使用当前 P _g_.m.p.ptr().status = _Prunning _g_.m.p.ptr().mcache.prepareForSweep() } else { // 释放当前 P，因为已失效 if _g_.m.p != 0 { if trace.enabled { // Pretend that we were descheduled // and then scheduled again to keep // the trace sane. traceGoSched() traceProcStop(_g_.m.p.ptr()) } _g_.m.p.ptr().m = 0 }
// 更换到 allp[0] _g_.m.p = 0 p := allp[0] p.m = 0 p.status = _Pidle // 直接将 allp[0] 绑定到当前的 M acquirep(p) if trace.enabled { traceGoStart() } }
// 将没有本地任务的 P 放到空闲链表中 var runnablePs *p for i := nprocs - 1; i >= 0; i-- { p := allp[i] // 确保不是当前正在使用的 P if _g_.m.p.ptr() == p { continue } // 放入 idle 链表 p.status = _Pidle if runqempty(p) { pidleput(p) } else { // 如果有本地任务，则为其绑定一个 M p.m.set(mget()) // 第一个循环为 nil，后续则为上一个 p // 此处即为构建可运行的 p 链表 p.link.set(runnablePs) runnablePs = p } } stealOrder.reset(uint32(nprocs)) var int32p *int32 = &gomaxprocs // make compiler check that gomaxprocs is an int32 atomic.Store((*uint32)(unsafe.Pointer(int32p)), uint32(nprocs)) return runnablePs }
// P 的初始化 func(pp *p) init(id int32) { // p 的 id 就是它在 allp 中的索引 pp.id = id // 新创建的 p 处于 _Pgcstop 状态 pp.status = _Pgcstop pp.sudogcache = pp.sudogbuf[:0] for i := range pp.deferpool { pp.deferpool[i] = pp.deferpoolbuf[i][:0] } pp.wbBuf.reset() // 为 P 分配 cache 对象 if pp.mcache == nil { if id == 0 { if mcache0 == nil { throw("missing mcache?") } // Use the bootstrap mcache0. Only one P will get // mcache0: the one with ID 0. pp.mcache = mcache0 } else { pp.mcache = allocmcache() } } if raceenabled && pp.raceprocctx == 0 { if id == 0 { pp.raceprocctx = raceprocctx0 raceprocctx0 = 0// bootstrap } else { pp.raceprocctx = raceproccreate() } } lockInit(&pp.timersLock, lockRankTimers)
// This P may get timers when it starts running. Set the mask here // since the P may not go through pidleget (notably P 0 on startup). timerpMask.set(id) // Similarly, we may not go through pidleget before this P starts // running if it is P 0 on startup. idlepMask.clear(id) }
// runq队列中的G移动到全局队列 for pp.runqhead != pp.runqtail { // 从本地队列中 pop pp.runqtail-- gp := pp.runq[pp.runqtail%uint32(len(pp.runq))].ptr() // push 到全局队列中 globrunqputhead(gp) } // runnext 移动到全局队列 if pp.runnext != 0 { globrunqputhead(pp.runnext.ptr()) pp.runnext = 0 } iflen(pp.timers) > 0 { plocal := getg().m.p.ptr() // The world is stopped, but we acquire timersLock to // protect against sysmon calling timeSleepUntil. // This is the only case where we hold the timersLock of // more than one P, so there are no deadlock concerns. lock(&plocal.timersLock) lock(&pp.timersLock) moveTimers(plocal, pp.timers) pp.timers = nil pp.numTimers = 0 pp.deletedTimers = 0 atomic.Store64(&pp.timer0When, 0) unlock(&pp.timersLock) unlock(&plocal.timersLock) } // Flush p's write barrier buffer. if gcphase != _GCoff { wbBufFlush1(pp) pp.gcw.dispose() } for i := range pp.sudogbuf { pp.sudogbuf[i] = nil } pp.sudogcache = pp.sudogbuf[:0] for i := range pp.deferpool { for j := range pp.deferpoolbuf[i] { pp.deferpoolbuf[i][j] = nil } pp.deferpool[i] = pp.deferpoolbuf[i][:0] } systemstack(func() { for i := 0; i < pp.mspancache.len; i++ { // Safe to call since the world is stopped. mheap_.spanalloc.free(unsafe.Pointer(pp.mspancache.buf[i])) } pp.mspancache.len = 0 lock(&mheap_.lock) pp.pcache.flush(&mheap_.pages) unlock(&mheap_.lock) }) freemcache(pp.mcache) pp.mcache = nil // 将当前 P 的空闲的 G 复链转移到全局 gfpurge(pp) traceProcFree(pp) if raceenabled { if pp.timerRaceCtx != 0 { // The race detector code uses a callback to fetch // the proc context, so arrange for that callback // to see the right thing. // This hack only works because we are the only // thread running. mp := getg().m phold := mp.p.ptr() mp.p.set(pp)
// GOMAXPROCS sets the maximum number of CPUs that can be executing // simultaneously and returns the previous setting. It defaults to // the value of runtime.NumCPU. If n < 1, it does not change the current setting. // This call will go away when the scheduler improves. funcGOMAXPROCS(n int)int { if GOARCH == "wasm" && n > 1 { n = 1// WebAssembly has no threads yet, so only one CPU is possible. }
lock(&sched.lock) ret := int(gomaxprocs) unlock(&sched.lock) if n <= 0 || n == ret { return ret }
stopTheWorldGC("GOMAXPROCS")
// newprocs will be processed by startTheWorld newprocs = int32(n)
// Stack 描述Goroutine的执行栈，栈的边界范围是 [lo, hi) type stack struct { lo uintptr hi uintptr }
type g struct { // Stack parameters. // stack describes the actual stack memory: [stack.lo, stack.hi). // stackguard0 is the stack pointer compared in the Go stack growth prologue. // It is stack.lo+StackGuard normally, but can be StackPreempt to trigger a preemption. // stackguard1 is the stack pointer compared in the C stack growth prologue. // It is stack.lo+StackGuard on g0 and gsignal stacks. // It is ~0 on other goroutine stacks, to trigger a call to morestackc (and crash). stack stack // offset known to runtime/cgo stackguard0 uintptr// offset known to liblink stackguard1 uintptr// offset known to liblink
_panic *_panic // innermost panic - offset known to liblink _defer *_defer // innermost defer m *m // current m; offset known to arm liblink sched gobuf syscallsp uintptr// if status==Gsyscall, syscallsp = sched.sp to use during gc syscallpc uintptr// if status==Gsyscall, syscallpc = sched.pc to use during gc stktopsp uintptr// expected sp at top of stack, to check in traceback // param is a generic pointer parameter field used to pass // values in particular contexts where other storage for the // parameter would be difficult to find. It is currently used // in three ways: // 1. When a channel operation wakes up a blocked goroutine, it sets param to // point to the sudog of the completed blocking operation. // 2. By gcAssistAlloc1 to signal back to its caller that the goroutine completed // the GC cycle. It is unsafe to do so in any other way, because the goroutine's // stack may have moved in the meantime. // 3. By debugCallWrap to pass parameters to a new goroutine because allocating a // closure in the runtime is forbidden. param unsafe.Pointer atomicstatus uint32 stackLock uint32// sigprof/scang lock; TODO: fold in to atomicstatus goid int64 schedlink guintptr waitsince int64// approx time when the g become blocked waitreason waitReason // if status==Gwaiting
preempt bool// preemption signal, duplicates stackguard0 = stackpreempt preemptStop bool// transition to _Gpreempted on preemption; otherwise, just deschedule preemptShrink bool// shrink stack at synchronous safe point
// asyncSafePoint is set if g is stopped at an asynchronous // safe point. This means there are frames on the stack // without precise pointer information. asyncSafePoint bool
paniconfault bool// panic (instead of crash) on unexpected fault address gcscandone bool// g has scanned stack; protected by _Gscan bit in status throwsplit bool// must not split stack // activeStackChans indicates that there are unlocked channels // pointing into this goroutine's stack. If true, stack // copying needs to acquire channel locks to protect these // areas of the stack. activeStackChans bool // parkingOnChan indicates that the goroutine is about to // park on a chansend or chanrecv. Used to signal an unsafe point // for stack shrinking. It's a boolean value, but is updated atomically. parkingOnChan uint8
raceignore int8// ignore race detection events sysblocktraced bool// StartTrace has emitted EvGoInSyscall about this goroutine tracking bool// whether we're tracking this G for sched latency statistics trackingSeq uint8// used to decide whether to track this G runnableStamp int64// timestamp of when the G last became runnable, only used when tracking runnableTime int64// the amount of time spent runnable, cleared when running, only used when tracking sysexitticks int64// cputicks when syscall has returned (for tracing) traceseq uint64// trace event sequencer tracelastp puintptr // last P emitted an event for this goroutine lockedm muintptr sig uint32 writebuf []byte sigcode0 uintptr sigcode1 uintptr sigpc uintptr gopc uintptr// pc of go statement that created this goroutine ancestors *[]ancestorInfo // ancestor information goroutine(s) that created this goroutine (only used if debug.tracebackancestors) startpc uintptr// pc of goroutine function racectx uintptr waiting *sudog // sudog structures this g is waiting on (that have a valid elem ptr); in lock order cgoCtxt []uintptr// cgo traceback context labels unsafe.Pointer // profiler labels timer *timer // cached timer for time.Sleep selectDone uint32// are we participating in a select and did someone win the race?
// Per-G GC state
// gcAssistBytes is this G's GC assist credit in terms of // bytes allocated. If this is positive, then the G has credit // to allocate gcAssistBytes bytes without assisting. If this // is negative, then the G must correct this by performing // scan work. We track this in bytes to make it fast to update // and check for debt in the malloc hot path. The assist ratio // determines how this corresponds to scan work debt. gcAssistBytes int64 }
G 其实就是用户函数体，里面保存了要执行的函数参数，函数体的入口。相比于 P，G 的状态相对较多，主要有以下这些：
// src/runtime/runtime2.go // defined constants const ( // G status // // Beyond indicating the general state of a G, the G status // acts like a lock on the goroutine's stack (and hence its // ability to execute user code). // // If you add to this list, add to the list // of "okay during garbage collection" status // in mgcmark.go too. // // TODO(austin): The _Gscan bit could be much lighter-weight. // For example, we could choose not to run _Gscanrunnable // goroutines found in the run queue, rather than CAS-looping // until they become _Grunnable. And transitions like // _Gscanwaiting -> _Gscanrunnable are actually okay because // they don't affect stack ownership.
// _Gscan combined with one of the above states other than // _Grunning indicates that GC is scanning the stack. The // goroutine is not executing user code and the stack is owned // by the goroutine that set the _Gscan bit. // // _Gscanrunning is different: it is used to briefly block // state transitions while GC signals the G to scan its own // stack. This is otherwise like _Grunning. // // atomicstatus&~Gscan gives the state the goroutine will // return to when the scan completes. _Gscan = 0x1000 _Gscanrunnable = _Gscan + _Grunnable // 0x1001 _Gscanrunning = _Gscan + _Grunning // 0x1002 _Gscansyscall = _Gscan + _Gsyscall // 0x1003 _Gscanwaiting = _Gscan + _Gwaiting // 0x1004 _Gscanpreempted = _Gscan + _Gpreempted // 0x1009 )
// 创建一个运行 fn 的新 g，具有 narg 字节大小的参数，从 argp 开始。 // callerps 是 go 语句的起始地址。新创建的 g 会被放入 g 的队列中等待运行。 // // This must run on the system stack because it's the continuation of // newproc, which cannot split the stack. // //go:systemstack funcnewproc1(fn *funcval, argp unsafe.Pointer, narg int32, callergp *g, callerpc uintptr) *g { if goexperiment.RegabiDefer && narg != 0 { // TODO: When we commit to GOEXPERIMENT=regabidefer, // rewrite the comments for newproc and newproc1. // newproc will no longer have a funny stack layout or // need to be nosplit. throw("go with non-empty frame") }
_g_ := getg() // 因为是在系统栈运行所以此时的 g 为 g0
if fn == nil { _g_.m.throwing = -1// do not dump full stacks throw("go of nil func value") } acquirem() // disable preemption because it can be holding p in a local var siz := narg siz = (siz + 7) &^ 7
// We could allocate a larger initial stack if necessary. // Not worth it: this is almost always an error. // 4*PtrSize: extra space added below // PtrSize: caller's LR (arm) or return address (x86, in gostartcall). if siz >= _StackMin-4*sys.PtrSize-sys.PtrSize { throw("newproc: function arguments too large for new goroutine") }
// 获得 p _p_ := _g_.m.p.ptr() // 根据 p 获得一个新的 g newg := gfget(_p_) // 初始化阶段，gfget 是不可能找到 g 的 // 也可能运行中本来就已经耗尽了 if newg == nil { newg = malg(_StackMin) // 创建一个拥有 _StackMin 大小的栈的 g，_StackMin 是 2048 // 将新创建的 g 从 _Gidle 更新为 _Gdead 状态 casgstatus(newg, _Gidle, _Gdead) allgadd(newg) // 将 Gdead 状态的 g 添加到 allg，这样 GC 不会扫描未初始化的栈 } if newg.stack.hi == 0 { throw("newproc1: newg missing stack") }
if readgstatus(newg) != _Gdead { throw("newproc1: new g is not Gdead") }
// 计算运行空间大小，对齐 totalSize := 4*sys.PtrSize + uintptr(siz) + sys.MinFrameSize // extra space in case of reads slightly beyond frame totalSize += -totalSize & (sys.StackAlign - 1) // align to StackAlign // 确定 sp 和参数入栈位置 sp := newg.stack.hi - totalSize spArg := sp if usesLR { // caller's LR *(*uintptr)(unsafe.Pointer(sp)) = 0 prepGoExitFrame(sp) spArg += sys.MinFrameSize }
(dlv) c
> runtime.newproc1() /usr/local/go/src/runtime/proc.go:4286 (hits total:1) (PC: 0x4de9c)
Warning: debugging optimized function
4281: throw("go with non-empty frame")
4282: }
4283:
4284: _g_ := getg()
4285:
=>4286: if fn == nil {
4287: _g_.m.throwing = -1 // do not dump full stacks
4288: throw("go of nil func value")
4289: }
4290: acquirem() // disable preemption because it can be holding p in a local var
4291: siz := narg
(dlv) p _g_.m.g0.goid
0
(dlv) p _g_.goid
0 // 当前g关联的m的g0ID和当前g的id相同，说明是在g0栈上运行
(dlv)
由于执行 newproc1 是在 systemstack() 函数中，我们来看这个函数的描述：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
// systemstack runs fn on a system stack. // If systemstack is called from the per-OS-thread (g0) stack, or // if systemstack is called from the signal handling (gsignal) stack, // systemstack calls fn directly and returns. // Otherwise, systemstack is being called from the limited stack // of an ordinary goroutine. In this case, systemstack switches // to the per-OS-thread stack, calls fn, and switches back. // It is common to use a func literal as the argument, in order // to share inputs and outputs with the code around the call // to system stack: // // ... set up y ... // systemstack(func() { // x = bigcall(y) // }) // ... use x ... // //go:noescape funcsystemstack(fn func())
创建 G 的过程也是相对比较复杂的，我们来总结一下这个过程：
首先尝试从 P 本地 gfree 链表或全局 gfree 队列获取已经执行过的 g
初始化过程中程序无论是本地队列还是全局队列都不可能获取到 g，因此创建一个新的 g，并为其分配运行线程（执行栈），这时 g 处于 _Gidle 状态
type schedt struct { // 原子访问，确保在32位系统上对齐 goidgen uint64// 全局goid生成器，newproc1 函数中有使用到 lastpoll uint64// time of last network poll, 0 if currently polling pollUntil uint64// time to which current poll is sleeping
lock mutex
// 当增加 nmidle，nmidlelocked，nmsys 或者 nmfreed时，确保调用 checkdead() // 这个函数在 src/runtime/proc.go 中，检查运行的M，如果数量是0，则 deadlock midle muintptr // 等待工作的空闲m列表 nmidle int32// 空闲M的数量 nmidlelocked int32// number of locked m's waiting for work mnext int64// 已经创建的M的数量用于记录M的ID maxmcount int32// 最大允许的m的数量，10000 nmsys int32// 系统线程数量不用于死锁检查 nmfreed int64// 累计已经释放的M的数量
ngsys uint32// 系统goroutine的数量，原子更新
pidle puintptr // 空闲p列表 npidle uint32 nmspinning uint32// See "Worker thread parking/unparking" comment in proc.go.
// 全局的可运行G队列 runq gQueue runqsize int32
// disable controls selective disabling of the scheduler. // // Use schedEnableUser to control this. // // disable is protected by sched.lock. disable struct { // user disables scheduling of user goroutines. user bool runnable gQueue // pending runnable Gs n int32// length of runnable }
// 全局_Gdead状态的G gFree struct { lock mutex stack gList // Gs with stacks noStack gList // Gs without stacks n int32 }
// Central pool of available defer structs of different sizes. deferlock mutex deferpool [5]*_defer
// freem is the list of m's waiting to be freed when their // m.exited is set. Linked through m.freelink. freem *m
gcwaiting uint32// gc is waiting to run stopwait int32 stopnote note sysmonwait uint32 sysmonnote note
// While true, sysmon not ready for mFixup calls. // Accessed atomically. sysmonStarting uint32
// safepointFn should be called on each P at the next GC // safepoint if p.runSafePointFn is set. safePointFn func(*p) safePointWait int32 safePointNote note
profilehz int32// cpu profiling rate
procresizetime int64// nanotime() of last change to gomaxprocs totaltime int64// ∫gomaxprocs dt up to procresizetime
// sysmonlock protects sysmon's actions on the runtime. // // Acquire and hold this mutex to block sysmon from interacting // with the rest of the runtime. sysmonlock mutex
_ uint32// ensure timeToRun has 8-byte alignment
// timeToRun is a distribution of scheduling latencies, defined // as the sum of time a G spends in the _Grunnable state before // it transitions to _Grunning. // // timeToRun is protected by sched.lock. timeToRun timeHistogram }
lock(&sched.lock) sched.lastpoll = uint64(nanotime()) procs := ncpu if n, ok := atoi32(gogetenv("GOMAXPROCS")); ok && n > 0 { procs = n } // P 初始化 if procresize(procs) != nil { throw("unknown runnable goroutine during bootstrap") } unlock(&sched.lock) }
// create a new goroutine to start program MOVQ $runtime·mainPC(SB), AX // entry PUSHQ AX PUSHQ $0 // arg size CALL runtime·newproc(SB) POPQ AX POPQ AX
// start this M CALL runtime·mstart(SB)
CALL runtime·abort(SB) // mstart should never return RET
// Prevent dead-code elimination of debugCallV2, which is // intended to be called by debuggers. MOVQ $runtime·debugCallV2<ABIInternal>(SB), AX RET
TEXT runtime·mstart(SB),NOSPLIT|TOPFRAME,$0 CALL runtime·mstart0(SB) RET // not reached
// mainPC is a function value for runtime.main, to be passed to newproc. // The reference to runtime.main is made via ABIInternal, since the // actual function (not the ABI0 wrapper) is needed by newproc. DATA runtime·mainPC+0(SB)/8,$runtime·main<ABIInternal>(SB) GLOBL runtime·mainPC(SB),RODATA,$8
mstart 是新创建的M的入口，由汇编完成。
1 2 3
// mstart is the entry-point for new Ms. // It is written in assembly, uses ABI0, is marked TOPFRAME, and calls mstart0. funcmstart()
// src/runtime/proc.go // mstart0 is the Go entry-point for new Ms. // This must not split the stack because we may not even have stack // bounds set up yet. // // May run during STW (because it doesn't have a P yet), so write // barriers are not allowed. // //go:nosplit //go:nowritebarrierrec funcmstart0() { _g_ := getg()
// 确定执行栈的边界，通过检查G执行栈的边界确定是否为系统栈 osStack := _g_.stack.lo == 0 if osStack { // Initialize stack bounds from system stack. // Cgo may have left stack size in stack.hi. // minit may update the stack bounds. // // Note: these bounds may not be very accurate. // We set hi to &size, but there are things above // it. The 1024 is supposed to compensate this, // but is somewhat arbitrary. size := _g_.stack.hi if size == 0 { size = 8192 * sys.StackGuardMultiplier } _g_.stack.hi = uintptr(noescape(unsafe.Pointer(&size))) _g_.stack.lo = _g_.stack.hi - size + 1024 } // Initialize stack guard so that we can start calling regular // Go code. _g_.stackguard0 = _g_.stack.lo + _StackGuard // This is the g0, so we can also call go:systemstack // functions, which check stackguard1. _g_.stackguard1 = _g_.stackguard0 mstart1()
// Exit this thread. if mStackIsSystemAllocated() { // Windows, Solaris, illumos, Darwin, AIX and Plan 9 always system-allocate // the stack, but put it in _g_.stack before mstart, // so the logic above hasn't set osStack yet. osStack = true } mexit(osStack) }
// The go:noinline is to guarantee the getcallerpc/getcallersp below are safe, // so that we can set up g0.sched to return to the call of mstart1 above. //go:noinline funcmstart1() { _g_ := getg()
// 确定当前的G是g0 if _g_ != _g_.m.g0 { throw("bad runtime·mstart") }
// Set up m.g0.sched as a label returning to just // after the mstart1 call in mstart0 above, for use by goexit0 and mcall. // We're never coming back to mstart1 after we call schedule, // so other calls can reuse the current frame. // And goexit0 does a gogo that needs to return from mstart1 // and let mstart0 exit the thread. // 将 m.g0.sched 设置为在上面 mstart0 中的 mstart1 调用之后返回的标签， // 供 goexit0 和 mcall 使用。在调用 schedule 之后，我们永远不会回到 mstart1， // 因此其他调用可以重用当前帧。而goexit0做了一个gogo，需要从mstart1返回，让mstart0退出线程。 _g_.sched.g = guintptr(unsafe.Pointer(_g_)) _g_.sched.pc = getcallerpc() _g_.sched.sp = getcallersp()
asminit() minit()
// Install signal handlers; after minit so that minit can // prepare the thread to be able to handle the signals. // 如果是 m0，设置信号处理器， if _g_.m == &m0 { mstartm0() }
// Associate p and the current m. // // This function is allowed to have write barriers even if the caller // isn't because it immediately acquires _p_. // //go:yeswritebarrierrec funcacquirep(_p_ *p) { // Do the part that isn't allowed to have write barriers. wirep(_p_)
// Have p; write barriers now allowed.
// Perform deferred mcache flush before this P can allocate // from a potentially stale mcache. _p_.mcache.prepareForSweep()
if trace.enabled { traceProcStart() } }
// wirep is the first step of acquirep, which actually associates the // current M to _p_. This is broken out so we can disallow write // barriers for this part, since we don't yet have a P. // //go:nowritebarrierrec //go:nosplit funcwirep(_p_ *p) { _g_ := getg()
// 检查m是否已经绑定p if _g_.m.p != 0 { throw("wirep: already in go") }
// 检查p是否已经绑定M或者P的状态不是_Pidle if _p_.m != 0 || _p_.status != _Pidle { id := int64(0) if _p_.m != 0 { id = _p_.m.ptr().id } print("wirep: p->m=", _p_.m, "(", id, ") p->status=", _p_.status, "\n") throw("wirep: invalid p state") }
M 是系统线程的抽象，它只有两种状态：park 和 unpark。无论出于什么原因，当 M 需要被暂止时，会调用 stopm 将 M 进行暂止，并阻塞到它被复始时，这一过程就是工作线程的暂止和复始。它的流程也非常简单，将 M 放回至空闲列表中，而后使用 note 注册一个暂止通知， 阻塞到它重新被复始。
// mPark causes a thread to park itself - temporarily waking for // fixups but otherwise waiting to be fully woken. This is the // only way that m's should park themselves. //go:nosplit funcmPark() { g := getg() for { // 暂止当前的 M，在此阻塞，直到被唤醒 notesleep(&g.m.park)
// Note, because of signal handling by this parked m, // a preemptive mDoFixup() may actually occur via // mDoFixupAndOSYield(). (See golang.org/issue/44193) noteclear(&g.m.park) if !mDoFixup() { return } } }
// One round of scheduler: find a runnable goroutine and execute it. // Never returns. funcschedule() { _g_ := getg()
if _g_.m.locks != 0 { throw("schedule: holding locks") }
// m.lockedg 会在 LockOSThread 下变为非零 if _g_.m.lockedg != 0 { stoplockedm() execute(_g_.m.lockedg.ptr(), false) // Never returns. }
// 我们不应该将正在执行cgo调用的g给调度走，因为cgo调用是在m的g0栈上 if _g_.m.incgo { throw("schedule: in cgo") }
top: pp := _g_.m.p.ptr() pp.preempt = false
// 如果需要 GC，不再进行调度 if sched.gcwaiting != 0 { gcstopm() goto top }
if pp.runSafePointFn != 0 { runSafePointFn() }
// Sanity check: if we are spinning, the run queue should be empty. // Check this before calling checkTimers, as that might call // goready to put a ready goroutine on the local run queue. if _g_.m.spinning && (pp.runnext != 0 || pp.runqhead != pp.runqtail) { throw("schedule: spinning with local work") }
checkTimers(pp, 0)
var gp *g var inheritTime bool
// Normal goroutines will check for need to wakeP in ready, // but GCworkers and tracereaders will not, so the check must // be done here instead. tryWakeP := false if trace.enabled || trace.shutdown { gp = traceReader() if gp != nil { casgstatus(gp, _Gwaiting, _Grunnable) traceGoUnpark(gp, 0) tryWakeP = true } }
// 如果正在GC，那就去找GC的g if gp == nil && gcBlackenEnabled != 0 { gp = gcController.findRunnableGCWorker(_g_.m.p.ptr()) if gp != nil { tryWakeP = true } }
if gp == nil { // Check the global runnable queue once in a while to ensure fairness. // Otherwise two goroutines can completely occupy the local runqueue // by constantly respawning each other. // 每调度P上的G61次，就去全局队列找一找 if _g_.m.p.ptr().schedtick%61 == 0 && sched.runqsize > 0 { lock(&sched.lock) gp = globrunqget(_g_.m.p.ptr(), 1) unlock(&sched.lock) } }
// 从当前P的 runnext 或者 runq 中查找 if gp == nil { gp, inheritTime = runqget(_g_.m.p.ptr()) // We can see gp != nil here even if the M is spinning, // if checkTimers added a local goroutine via goready. }
// 从其他P中偷取 if gp == nil { // findrunnable 挺长的，主要实现是从其他P偷取，查看 netpool 或者全局队列 // 如果都找不到那么会调用 stopm 函数进行休眠，指导找到一个可运行的G gp, inheritTime = findrunnable() // blocks until work is available }
// 找到G了
// This thread is going to run a goroutine and is not spinning anymore, // so if it was marked as spinning we need to reset it now and potentially // start a new spinning M. // 这个线程将去运行一个G，所以它不能再自旋了，所以如果它是自旋状态我们需要重置。 // 并且在这中间可能创建新的M。 if _g_.m.spinning { resetspinning() }
if sched.disable.user && !schedEnabled(gp) { // Scheduling of this goroutine is disabled. Put it on // the list of pending runnable goroutines for when we // re-enable user scheduling and look again. lock(&sched.lock) if schedEnabled(gp) { // Something re-enabled scheduling while we // were acquiring the lock. unlock(&sched.lock) } else { sched.disable.runnable.pushBack(gp) sched.disable.n++ unlock(&sched.lock) goto top } }
// If about to schedule a not-normal goroutine (a GCworker or tracereader), // wake a P if there is one. if tryWakeP { wakep() } if gp.lockedm != 0 { // 如果 g 需要 lock 到 m 上，则会将当前的 p， 给这个要 lock 的 g // 然后阻塞等待一个新的 p startlockedm(gp) goto top }
// Schedules gp to run on the current M. // If inheritTime is true, gp inherits the remaining time in the // current time slice. Otherwise, it starts a new time slice. // Never returns. // // Write barriers are allowed because this is called immediately after // acquiring a P in several places. // //go:yeswritebarrierrec funcexecute(gp *g, inheritTime bool) { _g_ := getg()
if trace.enabled { // GoSysExit has to happen when we have a P, but before GoStart. // So we emit it here. if gp.syscallsp != 0 && gp.sysblocktraced { traceGoSysExit(gp.sysexitticks) } traceGoStart() }
// 设置了一些必要的东西之后开始执行了 gogo(&gp.sched) }
当开始执行 execute 后，g 会被切换到 _Grunning 状态。 设置自身的抢占信号，将 m 和 g 进行绑定。 最终调用 gogo 开始执行，gogo 使用汇编实现：
// The top-most function running on a goroutine // returns to goexit+PCQuantum. TEXT runtime·goexit(SB),NOSPLIT|NOFRAME|TOPFRAME,$0-0 MOVD R0, R0 // NOP BL runtime·goexit1(SB) // does not return
// mcall switches from the g to the g0 stack and invokes fn(g), // where g is the goroutine that made the call. // mcall saves g's current PC/SP in g->sched so that it can be restored later. // It is up to fn to arrange for that later execution, typically by recording // g in a data structure, causing something to call ready(g) later. // mcall returns to the original goroutine g later, when g has been rescheduled. // fn must not return at all; typically it ends by calling schedule, to let the m // run other goroutines. // // mcall can only be called from g stacks (not g0, not gsignal). // // This must NOT be go:noescape: if fn is a stack-allocated closure, // fn puts g on a run queue, and g executes before fn returns, the // closure will be invalidated while it is still executing. funcmcall(fn func(*g))
// Finishes execution of the current goroutine. funcgoexit1() { if raceenabled { racegoend() } if trace.enabled { traceGoEnd() } // 切换到 m->g0 栈, 并调用 fn(g). // 通过 mcall 完成 goexit0 的调用 mcall(goexit0) }
// // 将 g 扔进 gfree 链表中等待复用 gfput(_g_.m.p.ptr(), gp) if locked { // The goroutine may have locked this thread because // it put it in an unusual kernel state. Kill it // rather than returning it to the thread pool.
// Return to mstart, which will release the P and exit // the thread. if GOOS != "plan9" { // See golang.org/issue/22227. gogo(&_g_.m.g0.sched) } else { // Clear lockedExt on plan9 since we may end up re-using // this thread. _g_.m.lockedExt = 0 } } // 再次进行调度 schedule() }
偷取 Goroutine
全局 g 链式队列中取 max 个 g，其中第一个用于执行，max-1 个放入本地队列。 如果放不下，则只在本地队列中放下能放的。过程比较简单：
// 从本地可运行队列中获取 g // 如果 inheritTime 为 true，则 g 继承剩余的时间片 // 否则开始一个新的时间片。在所有者 P 上执行 funcrunqget(_p_ *p) (gp *g, inheritTime bool) { // If there's a runnext, it's the next G to run. for { next := _p_.runnext if next == 0 { break } // 如果 cas 成功，则 g 继承剩余时间片执行 if _p_.runnext.cas(next, 0) { return next.ptr(), true } }
for { h := atomic.LoadAcq(&_p_.runqhead) // load-acquire, synchronize with other consumers t := _p_.runqtail // 本地队列是空，返回 nil if t == h { returnnil, false }
// 从本地队列中以 cas 方式拿一个 gp := _p_.runq[h%uint32(len(_p_.runq))].ptr() if atomic.CasRel(&_p_.runqhead, h, h+1) { // cas-release, commits consume return gp, false } } }
偷取（steal）的实现是一个非常复杂的过程。这个过程来源于我们 需要仔细的思考什么时候对调度器进行加锁、什么时候对 m 进行暂止、 什么时候将 m 从自旋向非自旋切换等等。
// 取本地队列 local runq，如果已经拿到，立刻返回 if gp, inheritTime := runqget(_p_); gp != nil { return gp, inheritTime }
// 全局队列 global runq，如果已经拿到，立刻返回 if sched.runqsize != 0 { lock(&sched.lock) gp := globrunqget(_p_, 0) unlock(&sched.lock) if gp != nil { return gp, false } }
// Poll 网络，优先级比从其他 P 中偷要高。 // 在我们尝试去其他 P 偷之前，这个 netpoll 只是一个优化。 // 如果没有 waiter 或 netpoll 中的线程已被阻塞，则可以安全地跳过它。 // 如果有任何类型的逻辑竞争与被阻塞的线程（例如它已经从 netpoll 返回，但尚未设置 lastpoll） // 该线程无论如何都将阻塞 netpoll。 if netpollinited() && atomic.Load(&netpollWaiters) > 0 && atomic.Load64(&sched.lastpoll) != 0 { if list := netpoll(0); !list.empty() { // non-blocking gp := list.pop() injectglist(&list) casgstatus(gp, _Gwaiting, _Grunnable) if trace.enabled { traceGoUnpark(gp, 0) } return gp, false } }
// Spinning Ms: steal work from other Ps. // // Limit the number of spinning Ms to half the number of busy Ps. // This is necessary to prevent excessive CPU consumption when // GOMAXPROCS>>1 but the program parallelism is low. procs := uint32(gomaxprocs) if _g_.m.spinning || 2*atomic.Load(&sched.nmspinning) < procs-atomic.Load(&sched.npidle) { if !_g_.m.spinning { _g_.m.spinning = true atomic.Xadd(&sched.nmspinning, 1) }
gp, inheritTime, tnow, w, newWork := stealWork(now) now = tnow if gp != nil { // 偷取成功 return gp, inheritTime }
if newWork { // There may be new timer or GC work; restart to // discover. goto top }
if w != 0 && (pollUntil == 0 || w < pollUntil) { // Earlier timer to wait for. pollUntil = w } }
// 没有任何 work 可做。 // 如果我们在 GC mark 阶段，则可以安全的扫描并 blacken 对象 // 然后便有 work 可做，运行 idle-time 标记而非直接放弃当前的 P。 if gcBlackenEnabled != 0 && gcMarkWorkAvailable(_p_) { node := (*gcBgMarkWorkerNode)(gcBgMarkWorkerPool.pop()) if node != nil { _p_.gcMarkWorkerMode = gcMarkWorkerIdleMode gp := node.gp.ptr() casgstatus(gp, _Gwaiting, _Grunnable) if trace.enabled { traceGoUnpark(gp, 0) } return gp, false } }
// 仅限于 wasm // 如果一个回调返回后没有其他 Goroutine 是苏醒的 // 则暂停执行直到回调被触发。 gp, otherReady := beforeIdle(now, pollUntil) if gp != nil { casgstatus(gp, _Gwaiting, _Grunnable) if trace.enabled { traceGoUnpark(gp, 0) } return gp, false } if otherReady { goto top }
// 放弃当前的 P 之前，对 allp 做一个快照 // 一旦我们不再阻塞在 safe-point 时候，可以立刻在下面进行修改 allpSnapshot := allp // Also snapshot masks. Value changes are OK, but we can't allow // len to change out from under us. idlepMaskSnapshot := idlepMask timerpMaskSnapshot := timerpMask
// 准备归还 p，对调度器加锁 lock(&sched.lock)
// 进入了 gc，回到顶部暂止 m if sched.gcwaiting != 0 || _p_.runSafePointFn != 0 { unlock(&sched.lock) goto top }
// 全局队列中又发现了任务 if sched.runqsize != 0 { gp := globrunqget(_p_, 0) unlock(&sched.lock) return gp, false }
// 归还当前的 p if releasep() != _p_ { throw("findrunnable: wrong p") } // 将 p 放入 idle 链表 pidleput(_p_) unlock(&sched.lock)
// Note the for correctness, only the last M transitioning from // spinning to non-spinning must perform these rechecks to // ensure no missed work. We are performing it on every M that // transitions as a conservative change to monitor effects on // latency. See golang.org/issue/43997.
// 再次检查 idle-priority GC work _p_, gp = checkIdleGCNoP() if _p_ != nil { acquirep(_p_) _g_.m.spinning = true atomic.Xadd(&sched.nmspinning, 1)
// Run the idle worker. _p_.gcMarkWorkerMode = gcMarkWorkerIdleMode casgstatus(gp, _Gwaiting, _Grunnable) if trace.enabled { traceGoUnpark(gp, 0) } return gp, false }
// Finally, check for timer creation or expiry concurrently with // transitioning from spinning to non-spinning. // // Note that we cannot use checkTimers here because it calls // adjusttimers which may need to allocate memory, and that isn't // allowed when we don't have an active P. pollUntil = checkTimersNoP(allpSnapshot, timerpMaskSnapshot, pollUntil) }
// Poll network until next timer. if netpollinited() && (atomic.Load(&netpollWaiters) > 0 || pollUntil != 0) && atomic.Xchg64(&sched.lastpoll, 0) != 0 { atomic.Store64(&sched.pollUntil, uint64(pollUntil)) if _g_.m.p != 0 { throw("findrunnable: netpoll with p") } if _g_.m.spinning { throw("findrunnable: netpoll with spinning") } delay := int64(-1) if pollUntil != 0 { if now == 0 { now = nanotime() } delay = pollUntil - now if delay < 0 { delay = 0 } } if faketime != 0 { // When using fake time, just poll. delay = 0 } list := netpoll(delay) // block until new work is available atomic.Store64(&sched.pollUntil, 0) atomic.Store64(&sched.lastpoll, uint64(nanotime())) if faketime != 0 && list.empty() { // Using fake time and nothing is ready; stop M. // When all M's stop, checkdead will call timejump. stopm() goto top } lock(&sched.lock) _p_ = pidleget() unlock(&sched.lock) if _p_ == nil { injectglist(&list) } else { acquirep(_p_) if !list.empty() { gp := list.pop() injectglist(&list) casgstatus(gp, _Gwaiting, _Grunnable) if trace.enabled { traceGoUnpark(gp, 0) } return gp, false } if wasSpinning { _g_.m.spinning = true atomic.Xadd(&sched.nmspinning, 1) } goto top } } elseif pollUntil != 0 && netpollinited() { pollerPollUntil := int64(atomic.Load64(&sched.pollUntil)) if pollerPollUntil == 0 || pollerPollUntil > pollUntil { netpollBreak() } } stopm() goto top }
funcresetspinning() { _g_ := getg() if !_g_.m.spinning { throw("resetspinning: not a spinning m") } _g_.m.spinning = false nmspinning := atomic.Xadd(&sched.nmspinning, -1) ifint32(nmspinning) < 0 { throw("findrunnable: negative nmspinning") } // M wakeup policy is deliberately somewhat conservative, so check if we // need to wakeup another P here. See "Worker thread parking/unparking" // comment at the top of the file for details. wakep() }
// 尝试将一个或多个 P 唤醒来执行 G // 当 G 可能运行时（newproc, ready）时调用该函数 funcwakep() { if atomic.Load(&sched.npidle) == 0 { return } // be conservative about spinning threads if atomic.Load(&sched.nmspinning) != 0 || !atomic.Cas(&sched.nmspinning, 0, 1) { return } startm(nil, true) }
// Schedules some M to run the p (creates an M if necessary). // If p==nil, tries to get an idle P, if no idle P's does nothing. // May run with m.p==nil, so write barriers are not allowed. // If spinning is set, the caller has incremented nmspinning and startm will // either decrement nmspinning or set m.spinning in the newly started M. // // Callers passing a non-nil P must call from a non-preemptible context. See // comment on acquirem below. // // Must not have write barriers because this may be called without a P. //go:nowritebarrierrec funcstartm(_p_ *p, spinning bool) { // Disable preemption. // // Every owned P must have an owner that will eventually stop it in the // event of a GC stop request. startm takes transient ownership of a P // (either from argument or pidleget below) and transfers ownership to // a started M, which will be responsible for performing the stop. // // Preemption must be disabled during this transient ownership, // otherwise the P this is running on may enter GC stop while still // holding the transient P, leaving that P in limbo and deadlocking the // STW. // // Callers passing a non-nil P must already be in non-preemptible // context, otherwise such preemption could occur on function entry to // startm. Callers passing a nil P may be preemptible, so we must // disable preemption before acquiring a P from pidleget below. mp := acquirem() lock(&sched.lock) if _p_ == nil { _p_ = pidleget() if _p_ == nil { unlock(&sched.lock) if spinning { // The caller incremented nmspinning, but there are no idle Ps, // so it's okay to just undo the increment and give up. ifint32(atomic.Xadd(&sched.nmspinning, -1)) < 0 { throw("startm: negative nmspinning") } } releasem(mp) return } } nmp := mget() if nmp == nil { // No M is available, we must drop sched.lock and call newm. // However, we already own a P to assign to the M. // // Once sched.lock is released, another G (e.g., in a syscall), // could find no idle P while checkdead finds a runnable G but // no running M's because this new M hasn't started yet, thus // throwing in an apparent deadlock. // // Avoid this situation by pre-allocating the ID for the new M, // thus marking it as 'running' before we drop sched.lock. This // new M will eventually run the scheduler to execute any // queued G's. id := mReserveID() unlock(&sched.lock)
var fn func() if spinning { // The caller incremented nmspinning, so set m.spinning in the new M. fn = mspinning } newm(fn, _p_, id) // Ownership transfer of _p_ committed by start in newm. // Preemption is now safe. releasem(mp) return } unlock(&sched.lock) if nmp.spinning { throw("startm: m is spinning") } if nmp.nextp != 0 { throw("startm: m has p") } if spinning && !runqempty(_p_) { throw("startm: p has runnable gs") } // The caller incremented nmspinning, so set m.spinning in the new M. nmp.spinning = spinning nmp.nextp.set(_p_) notewakeup(&nmp.park) // Ownership transfer of _p_ committed by wakeup. Preemption is now // safe. releasem(mp) }
// 创建一个新的 m. 它会启动并调用 fn 或调度器 // fn 必须是静态、非堆上分配的闭包 // 它可能在 m.p==nil 时运行，因此不允许 write barrier // // id is optional pre-allocated m ID. Omit by passing -1. //go:nowritebarrierrec funcnewm(fn func(), _p_ *p, id int64) { // 分配一个 m mp := allocm(_p_, fn, id) mp.doesPark = (_p_ != nil) // 设置 p 用于后续绑定 mp.nextp.set(_p_) // 设置 signal mask mp.sigmask = initSigmask if gp := getg(); gp != nil && gp.m != nil && (gp.m.lockedExt != 0 || gp.m.incgo) && GOOS != "plan9" { // We're on a locked M or a thread that may have been // started by C. The kernel state of this thread may // be strange (the user may have locked it for that // purpose). We don't want to clone that into another // thread. Instead, ask a known-good thread to create // the thread for us. // // This is disabled on Plan 9. See golang.org/issue/22227. // // TODO: This may be unnecessary on Windows, which // doesn't model thread creation off fork. lock(&newmHandoff.lock) if newmHandoff.haveTemplateThread == 0 { throw("on a locked thread with no template thread") } mp.schedlink = newmHandoff.newm newmHandoff.newm.set(mp) if newmHandoff.waiting { newmHandoff.waiting = false // 唤醒 m, 自旋到非自旋 notewakeup(&newmHandoff.wake) } unlock(&newmHandoff.lock) return } newm1(mp) }
// Allocate a new m unassociated with any thread. // Can use p for allocation context if needed. // fn is recorded as the new m's m.mstartfn. // id is optional pre-allocated m ID. Omit by passing -1. // // This function is allowed to have write barriers even if the caller // isn't because it borrows _p_. // //go:yeswritebarrierrec funcallocm(_p_ *p, fn func(), id int64) *m { _g_ := getg() acquirem() // disable GC because it can be called from sysmon if _g_.m.p == 0 { acquirep(_p_) // temporarily borrow p for mallocs in this function }
// Release the free M list. We need to do this somewhere and // this may free up a stack we can use. if sched.freem != nil { lock(&sched.lock) var newList *m for freem := sched.freem; freem != nil; { if freem.freeWait != 0 { next := freem.freelink freem.freelink = newList newList = freem freem = next continue } // stackfree must be on the system stack, but allocm is // reachable off the system stack transitively from // startm. systemstack(func() { stackfree(freem.g0.stack) }) freem = freem.freelink } sched.freem = newList unlock(&sched.lock) }
mp := new(m) mp.mstartfn = fn mcommoninit(mp, id)
// In case of cgo or Solaris or illumos or Darwin, pthread_create will make us a stack. // Windows and Plan 9 will layout sched stack on OS stack. if iscgo || mStackIsSystemAllocated() { mp.g0 = malg(-1) } else { mp.g0 = malg(8192 * sys.StackGuardMultiplier) } mp.g0.m = mp
if _p_ == _g_.m.p.ptr() { releasep() } releasem(_g_.m)
return mp }
funcnewm1(mp *m) { if iscgo { var ts cgothreadstart if _cgo_thread_start == nil { throw("_cgo_thread_start missing") } ts.g.set(mp.g0) ts.tls = (*uint64)(unsafe.Pointer(&mp.tls[0])) ts.fn = unsafe.Pointer(funcPC(mstart)) if msanenabled { msanwrite(unsafe.Pointer(&ts), unsafe.Sizeof(ts)) } execLock.rlock() // Prevent process clone. asmcgocall(_cgo_thread_start, unsafe.Pointer(&ts)) execLock.runlock() return } execLock.rlock() // Prevent process clone. newosproc(mp) execLock.runlock() }
当 m 被创建时，会转去运行 mstart：
如果当前程序为 cgo 程序，则会通过 asmcgocall 来创建线程并调用 mstart
否则会调用 newosproc 来创建线程，从而调用 mstart。
既然是 newosproc ，我们此刻仍在 Go 的空间中，那么实现就是操作系统特定的了，以下是linux上的：
// May run with m.p==nil, so write barriers are not allowed. //go:nowritebarrier funcnewosproc(mp *m) { stk := unsafe.Pointer(mp.g0.stack.hi) /* * note: strace gets confused if we use CLONE_PTRACE here. */ iffalse { print("newosproc stk=", stk, " m=", mp, " g=", mp.g0, " clone=", funcPC(clone), " id=", mp.id, " ostk=", &mp, "\n") }
// Disable signals during clone, so that the new thread starts // with signals disabled. It will enable them in minit. var oset sigset sigprocmask(_SIG_SETMASK, &sigset_all, &oset) ret := clone(cloneFlags, stk, unsafe.Pointer(mp), unsafe.Pointer(mp.g0), unsafe.Pointer(funcPC(mstart))) sigprocmask(_SIG_SETMASK, &oset, nil)
if ret < 0 { print("runtime: failed to create new OS thread (have ", mcount(), " already; errno=", -ret, ")\n") if ret == -_EAGAIN { println("runtime: may need to increase max user processes (ulimit -u)") } throw("newosproc") } }
M/G 解绑
实际上就是指将当前 g 的 m 置空、将当前 m 的 g 置空，从而完成解绑，通过 dropg 完成：
// setMNoWB 当使用 muintptr 不可行时，在没有 write barrier 下执行 *mp = new //go:nosplit //go:nowritebarrier funcsetMNoWB(mp **m, new *m) { (*muintptr)(unsafe.Pointer(mp)).set(new) }
// setGNoWB 当使用 guintptr 不可行时，在没有 write barrier 下执行 *gp = new //go:nosplit //go:nowritebarrier funcsetGNoWB(gp **g, new *g) { (*guintptr)(unsafe.Pointer(gp)).set(new) }
整个调度器循环可以以下面的一张图来描述：
系统监控
在创建主goroutine的时候，也在系统栈上启动了 sysmon，是时候了解下它的作用了：
1 2 3 4 5 6 7 8 9 10 11 12 13
funcmain() { .... if GOARCH != "wasm" { // no threads on wasm yet, so no sysmon // For runtime_syscall_doAllThreadsSyscall, we // register sysmon is not ready for the world to be // stopped. atomic.Store(&sched.sysmonStarting, 1) systemstack(func() { newm(sysmon, nil, -1) }) } .... }
// Always runs without a P, so write barriers are not allowed. // //go:nowritebarrierrec funcsysmon() { lock(&sched.lock) sched.nmsys++ checkdead() unlock(&sched.lock)
// For syscall_runtime_doAllThreadsSyscall, sysmon is // sufficiently up to participate in fixups. atomic.Store(&sched.sysmonStarting, 0)
lasttrace := int64(0) idle := 0// how many cycles in succession we had not wokeup somebody delay := uint32(0)
// 如果启用了 schedtrace，sysmon 不应进入深度睡眠，以便它可以在正确的时间打印该信息。 // // 如果有任何活动的 P，它也不应该进入深度睡眠，这样它就可以从系统调用中重新获取 P， // 抢占长时间运行的 G，并在所有 P 长时间忙碌时轮询网络。 // // 如果某个P由于退出系统调用或者定时器到期而重新被激活，那么sysmon应该从深度睡眠中唤醒， // 以便它可以继续干自己的活。 now := nanotime() if debug.schedtrace <= 0 && (sched.gcwaiting != 0 || atomic.Load(&sched.npidle) == uint32(gomaxprocs)) { lock(&sched.lock) if atomic.Load(&sched.gcwaiting) != 0 || atomic.Load(&sched.npidle) == uint32(gomaxprocs) { syscallWake := false next, _ := timeSleepUntil() if next > now { atomic.Store(&sched.sysmonwait, 1) unlock(&sched.lock) // Make wake-up period small enough // for the sampling to be correct. sleep := forcegcperiod / 2 if next-now < sleep { sleep = next - now } shouldRelax := sleep >= osRelaxMinNS if shouldRelax { osRelax(true) } syscallWake = notetsleep(&sched.sysmonnote, sleep) mDoFixup() if shouldRelax { osRelax(false) } lock(&sched.lock) atomic.Store(&sched.sysmonwait, 0) noteclear(&sched.sysmonnote) } if syscallWake { idle = 0 delay = 20 } } unlock(&sched.lock) }
lock(&sched.sysmonlock) // Update now in case we blocked on sysmonnote or spent a long time // blocked on schedlock or sysmonlock above. now = nanotime()
// trigger libc interceptors if needed if *cgo_yield != nil { asmcgocall(*cgo_yield, nil) }
// 如果超过 10ms 没有 poll，则 poll 一下网络 lastpoll := int64(atomic.Load64(&sched.lastpoll)) if netpollinited() && lastpoll != 0 && lastpoll+10*1000*1000 < now { atomic.Cas64(&sched.lastpoll, uint64(lastpoll), uint64(now)) list := netpoll(0) // non-blocking - returns list of goroutines if !list.empty() { // 需要在插入 g 列表前减少空闲锁住的 m 的数量（假装有一个正在运行） // 否则会导致这些情况： // injectglist 会绑定所有的 p，但是在它开始 M 运行 P 之前，另一个 M 从 syscall 返回， // 完成运行它的 G ，注意这时候没有 work 要做，且没有其他正在运行 M 的死锁报告。 incidlelocked(-1) injectglist(&list) incidlelocked(1) } } mDoFixup() if GOOS == "netbsd" { // netpoll is responsible for waiting for timer // expiration, so we typically don't have to worry // about starting an M to service timers. (Note that // sleep for timeSleepUntil above simply ensures sysmon // starts running again when that timer expiration may // cause Go code to run again). // // However, netbsd has a kernel bug that sometimes // misses netpollBreak wake-ups, which can lead to // unbounded delays servicing timers. If we detect this // overrun, then startm to get something to handle the // timer. // // See issue 42515 and // https://gnats.netbsd.org/cgi-bin/query-pr-single.pl?number=50094. if next, _ := timeSleepUntil(); next < now { startm(nil, false) } }
if atomic.Load(&scavenge.sysmonWake) != 0 { // Kick the scavenger awake if someone requested it. wakeScavenger() }
// 抢占在 syscall 中阻塞的 P、运行时间过长的 G if retake(now) != 0 { idle = 0 } else { idle++ }
// 检查是否需要强制触发 GC if t := (gcTrigger{kind: gcTriggerTime, now: now}); t.test() && atomic.Load(&forcegc.idle) != 0 { lock(&forcegc.lock) forcegc.idle = 0 var list gList list.push(forcegc.g) injectglist(&list) unlock(&forcegc.lock) } if debug.schedtrace > 0 && lasttrace+int64(debug.schedtrace)*1000000 <= now { lasttrace = now schedtrace(debug.scheddetail > 0) } unlock(&sched.sysmonlock) } }
系统监控在运行时扮演的角色无需多言， 因为使用的是运行时通知机制，在 Linux 上由 Futex 实现，不依赖调度器， 因此它自身通过 newm 在一个 M 上独立运行， 自身永远保持在一个循环内直到应用结束。休眠有好几种不同的休眠策略：
// LockOSThread wires the calling goroutine to its current operating system thread. // The calling goroutine will always execute in that thread, // and no other goroutine will execute in it, // until the calling goroutine has made as many calls to // UnlockOSThread as to LockOSThread. // If the calling goroutine exits without unlocking the thread, // the thread will be terminated. // // All init functions are run on the startup thread. Calling LockOSThread // from an init function will cause the main function to be invoked on // that thread. // // A goroutine should call LockOSThread before calling OS services or // non-Go library functions that depend on per-thread state. funcLockOSThread() { if atomic.Load(&newmHandoff.haveTemplateThread) == 0 && GOOS != "plan9" { // 如果我们需要从锁定的线程启动一个新线程，我们需要模板线程。 // 当我们处于一个已知良好的状态时，立即启动它。 startTemplateThread() } _g_ := getg() _g_.m.lockedExt++ if _g_.m.lockedExt == 0 { _g_.m.lockedExt-- panic("LockOSThread nesting overflow") } dolockOSThread() }
1 2 3 4 5 6 7 8 9 10 11
// dolockOSThread 在修改 m.locked 后由 LockOSThread 和 lockOSThread 调用。 // 在此调用期间不允许抢占，否则此函数中的 m 可能与调用者中的 m 不同。 //go:nosplit funcdolockOSThread() { if GOARCH == "wasm" { return// no threads on wasm yet } _g_ := getg() _g_.m.lockedg.set(_g_) _g_.lockedm.set(_g_.m) }
// UnlockOSThread undoes an earlier call to LockOSThread. // If this drops the number of active LockOSThread calls on the // calling goroutine to zero, it unwires the calling goroutine from // its fixed operating system thread. // If there are no active LockOSThread calls, this is a no-op. // // Before calling UnlockOSThread, the caller must ensure that the OS // thread is suitable for running other goroutines. If the caller made // any permanent changes to the state of the thread that would affect // other goroutines, it should not call this function and thus leave // the goroutine locked to the OS thread until the goroutine (and // hence the thread) exits. funcUnlockOSThread() { _g_ := getg() if _g_.m.lockedExt == 0 { return } _g_.m.lockedExt-- dounlockOSThread() }
dounlockOSThread 只是简单的将 lockedg 和 lockedm 两个字段清零：
1 2 3 4 5 6 7 8 9 10 11 12 13 14
// dounlockOSThread 在更新 m->locked 后由 UnlockOSThread 和 unlockOSThread 调用。 // 在此调用期间不允许抢占，否则此函数中的 m 可能与调用者中的 m 不同。 //go:nosplit funcdounlockOSThread() { if GOARCH == "wasm" { return// no threads on wasm yet } _g_ := getg() if _g_.m.lockedInt != 0 || _g_.m.lockedExt != 0 { return } _g_.m.lockedg = 0 _g_.lockedm = 0 }
