K8S集群中部署MySQL

发表于 分类于 阅读次数： 本文字数： 876 阅读时长 ≈ 3 分钟

本文描述如何在k8s集群中部署一个MySQL服务，前提请看K8S集群部署创建一个测试集群。如我本地，仅有一个控制节点：

1
2
3
root@ctrlnode:/home/ubuntu# kubectl get nodes
NAME       STATUS   ROLES           AGE   VERSION
ctrlnode   Ready    control-plane   72m   v1.28.15

创建hostpath目录

这里创建的目录将被用于PV卷创建，MySQL服务产生的数据也将保存在这个目录下。如果目录变更，请同步修改后续的PV卷的hostpath路径：

mkdir -p /mnt/k8s/mysql-demo/mysql-data

为节点增加标签

为了让Pod能调度到这个和PV强绑定的节点上来，给节点打个标签pvtype=hostpath：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
$ kubectl label nodes ctrlnode pvtype=hostpath
node/ctrlnode labeled
$ kubectl describe node ctrlnode
Name:               ctrlnode
Roles:              control-plane,master
Labels:             beta.kubernetes.io/arch=amd64
                    beta.kubernetes.io/instance-type=k3s
                    beta.kubernetes.io/os=linux
                    kubernetes.io/arch=amd64
                    kubernetes.io/hostname=ctrlnode
                    kubernetes.io/os=linux
                    node-role.kubernetes.io/control-plane=true
                    node-role.kubernetes.io/master=true
                    node.kubernetes.io/instance-type=k3s
                    pvtype=hostpath
....

部署MySQL服务

将下面的模板保存为 mysql.yaml，然后从文件创建MySQL服务：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
apiVersion: v1
kind: Namespace
metadata:
  name: mysql-demo
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql-config
  namespace: mysql-demo
  labels:
    app: mysql
data:
  my.cnf: |-
    [client]
    default-character-set=utf8mb4
    [mysql]
    default-character-set=utf8mb4
    [mysqld]
    max_connections = 2000
    secure_file_priv=/var/lib/mysql
    sql_mode=STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_ENGINE_SUBSTITUTION
---
## PV
apiVersion: v1
kind: PersistentVolume
metadata:
  name: mysql
  namespace: mysql-demo
  labels:
    app: mysql
spec:
  storageClassName: manual
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: "/mnt/k8s/mysql-demo/mysql-data"
---
## PVC
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mysql
  namespace: mysql-demo
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: manual
  resources:
    requests:
      storage: 1Gi
  selector:
    matchLabels:
      app: mysql #根据 Label 选择对应 PV
---
## Service
apiVersion: v1
kind: Service
metadata:
  name: mysql
  namespace: mysql-demo
  labels:
    app: mysql
spec:
  type: NodePort
  ports:
    - name: mysql
      port: 3306
      targetPort: 3306
      nodePort: 30336
  selector:
    app: mysql
---
## StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mysql
  namespace: mysql-demo
  labels:
    app: mysql
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mysql
  template:
    metadata:
      labels:
        app: mysql
    spec:
      containers:
        - name: mysql
          image: mysql
          ports:
            - containerPort: 3306
          env:
            - name: MYSQL_ROOT_PASSWORD ## 配置Root用户默认密码
              value: "123456"
          resources:
            limits:
              cpu: 1000m
              memory: 512Mi
            requests:
              cpu: 1000m
              memory: 512Mi
          livenessProbe:
            initialDelaySeconds: 30
            periodSeconds: 10
            timeoutSeconds: 5
            successThreshold: 1
            failureThreshold: 3
            exec:
              command:
                ["mysqladmin", "-uroot", "-p${MYSQL_ROOT_PASSWORD}", "ping"]
          readinessProbe:
            initialDelaySeconds: 10
            periodSeconds: 10
            timeoutSeconds: 5
            successThreshold: 1
            failureThreshold: 3
            exec:
              command:
                ["mysqladmin", "-uroot", "-p${MYSQL_ROOT_PASSWORD}", "ping"]
          volumeMounts:
            - name: data
              mountPath: /var/lib/mysql
            - name: config
              mountPath: /etc/mysql/conf.d/my.cnf
              subPath: my.cnf
            - name: localtime
              readOnly: true
              mountPath: /etc/localtime
      volumes:
        - name: data
          persistentVolumeClaim:
            claimName: mysql
        - name: config
          configMap:
            name: mysql-config
        - name: localtime
          hostPath:
            type: File
            path: /etc/localtime

执行命令：

1
2
3
4
5
6
7
root@ctrlnode:/home/ubuntu/mysql-test# kubectl apply -f mysql.yaml
namespace/mysql-demo created
configmap/mysql-config created
persistentvolume/mysql created
persistentvolumeclaim/mysql created
service/mysql created
statefulset.apps/mysql created

集群内验证MySQL登录

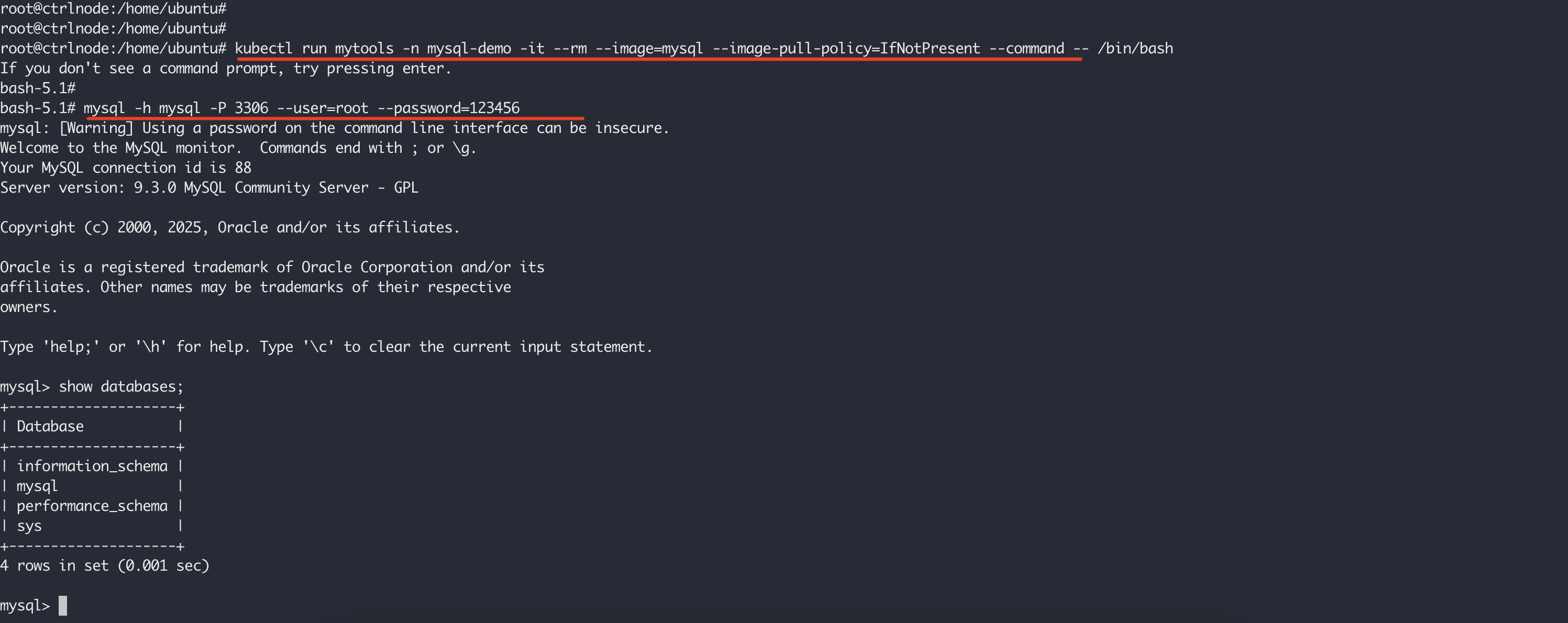

上面的模板还创建了NodePort类型的MySQL服务，所以在集群之内进行登录。首先创建一个临时的客户端容器：

kubectl run mytools -n mysql-demo -it --rm --image=mysql --image-pull-policy=IfNotPresent --command – /bin/bash

然后通过mysql名字访问数据库：

mysql -h mysql -P 3306 --user=root --password=123456

集群外验证MySQL登录

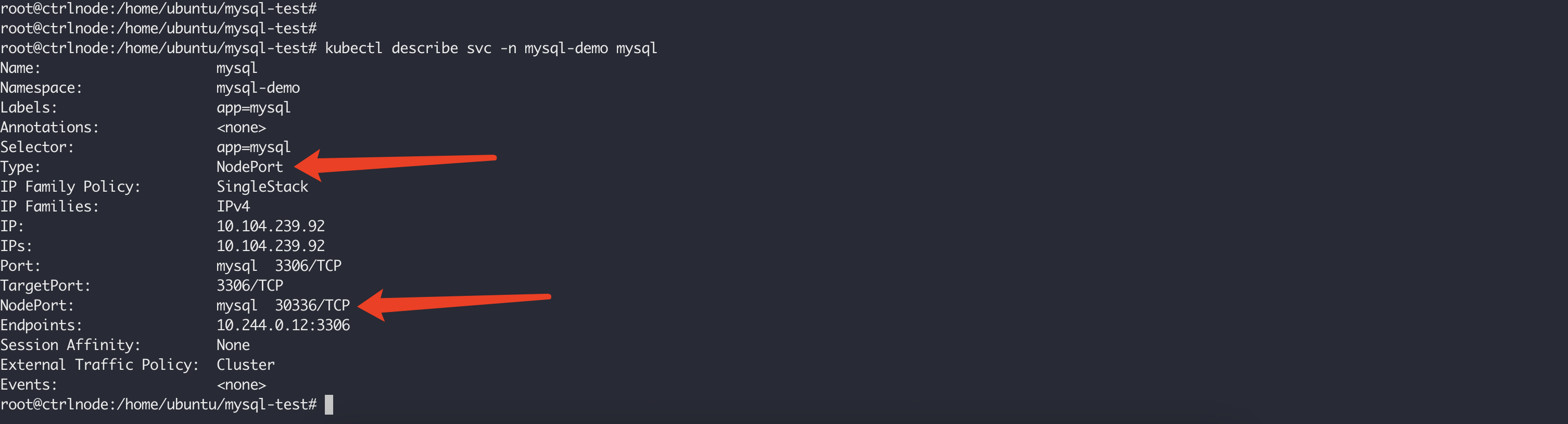

NodePort类型的服务可以从k8s集群外进行访问，这里在集群之外使用docker创建个MySQL客户端进行验证。首先查看MySQL服务的暴露在节点上的端口：

这里使用docker创建的MySQL客户端和K8S集群就不在同一个网络了，是在集群之外访问，需要使用节点的IP地址：

1
2
3
4
5
6
7
8
9
10
root@ctrlnode:/home/ubuntu/mysql-test# ifconfig enp0s1
enp0s1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.67.15  netmask 255.255.255.0  broadcast 192.168.67.255
        inet6 fe80::5054:ff:fe4d:9547  prefixlen 64  scopeid 0x20<link>
        inet6 fd96:5cad:8347:c4a6:5054:ff:fe4d:9547  prefixlen 64  scopeid 0x0<global>
        ether 52:54:00:4d:95:47  txqueuelen 1000  (Ethernet)
        RX packets 977281  bytes 1235853010 (1.2 GB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 245325  bytes 24153583 (24.1 MB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

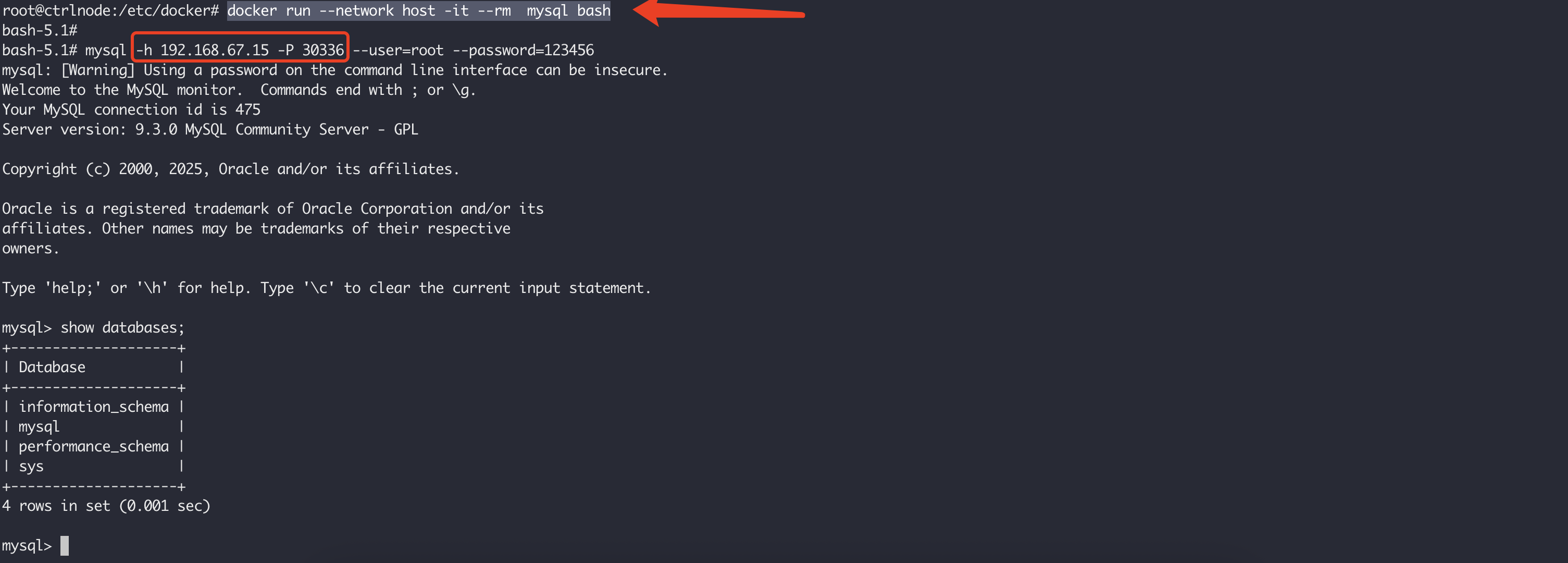

接下来使用docker创建一个临时的MySQL客户端容器：

docker run --network host -it --rm mysql bash
